R5000-Mmx/5X.300.2x500.2x23
Point à point

R5000-Mmx/5X.300.2x500.2x23

280 Mbps
3.1 - 6.4 GHz
Detailed specification
pdf, 218.25 KB
Demander un devis Сhargement

Features

Please scroll horizontally to see the whole table.
DESCRIPTION
DescriptionInfiLINK 2x2 PRO R5000-Mmx/5X.300.2x500.2x23, 5 GHz point-to-point unit, net throughput up to 280 Mbps, integrated dual-pol antenna, 23 dBi, 10x10 deg
Net throughputup to 280 Mbps
Recommended distancesup to 30 km
RADIO
Radio technologyMIMO 2x2 (OFDM 64/128)
Modulation coding schemesfrom BPSK 1/2 to QAM64 5/6
Transmit powerup to 27 dBm
Frequency range4900-6050 MHz
Channel width5, 10, 20, 40 MHz
Antenna23 dBi
WIRED INTERFACES
Wired Interfaces1x GigabitEthernet (RJ45)
FORM FACTOR AND DIMENSIONS
Outdoor Unit (ODU) 305 x 305 x 68 mm, 2.5 kg

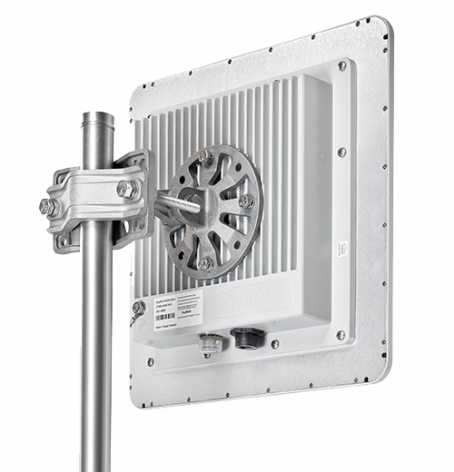

APPEARANCE

PACKING LIST
DescriptionPart NumberQuantity
Outdoor UnitR5000-Mmx/5X.300.2x500.2x231 pcs.
Power Supply IDU-BS-G 1 pcs.
Power Cord IEC C13 1 pcs.
Connector INFINET-002-P 1 pcs.
Standard RJ-45 connector TPR-8P8C 1 pcs.
Shielded RJ-45 connector 8P8C-U-C5-SH 1 pcs.
RJ-45 Plug Cap TPC-1G 1 pcs.
Mounting kit MONT-KIT-85 1 pcs.
Quick Start Guide - 1 pcs.
