R5000-Smn/6.300.2x200.2x27

R5000-Smn/6.300.2x200.2x27

GHz
Demander un devis Сhargement

Features

DESCRIPTION
Description InfiMAN 2x2 Integrated 27 dBi Dual-polarization Antenna Subscriber Terminal
Performance

8 Mbps (up to 8 Mbps net)
  20 Mbps (up to 20 Mbps net)


50 Mbps (up to 50 Mbps net)


300 Mbps (up to 180 Mbps net)


License upgradeable
Distances Up to 50 km
RADIO
Radio technology MIMO 2x2 with OFDM 64/128
Modulation types BPSK ½ to QAM64 5/6
Transmit power up to 23 dBm
Receiver sensitivity -67..-97 dBm
Frequency bands 6.0-6.4 GHz
Channel bandwidth 5/10/20/40 MHz
Antenna

27 dBi dual-pol integrated antenna
WIRED INTERFACES

2x Fast Ethernet  (10/100 Base-T)
PoE output at the second Ethernet port
RJ-45 connector
POWER CONSUMPTION
Consumption

Up to 7 Watts
Power options

110-240 VAC @ 50/60 Hz


+9..56 VDC
FORM FACTOR AND DIMENSIONS

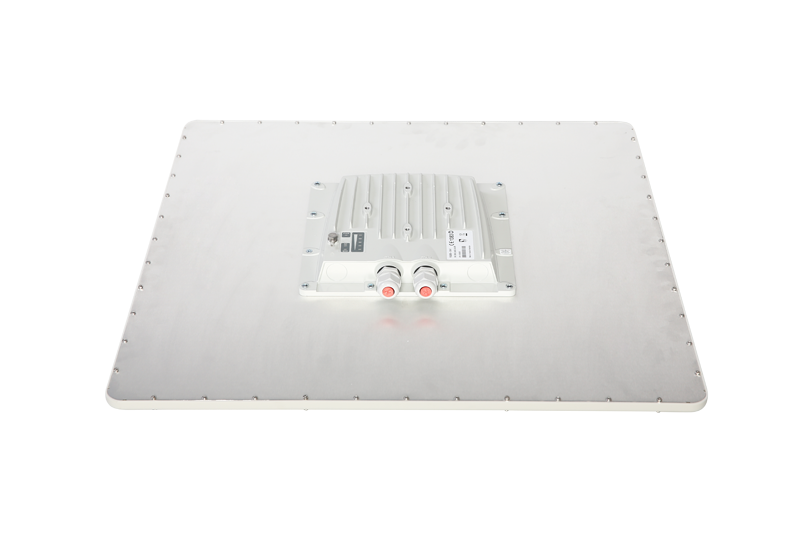

Outdoor Unit (ODU) Outdoor Unit (ODU)
600 x 600 x 75 mm, 6.1 kg
Indoor Unit (IDU-BS-G) 85 x 76 x 36 mm, 0.15 kg
PART NUMBER
Options
Base Model Freq. Band Bitrate

Output Power

 Ant. Capacity
R5000-Smn/ 6 300 2x200 2x27 8
20
50
300
Example R5000-Smn/6.300.2x200.2x27|50
